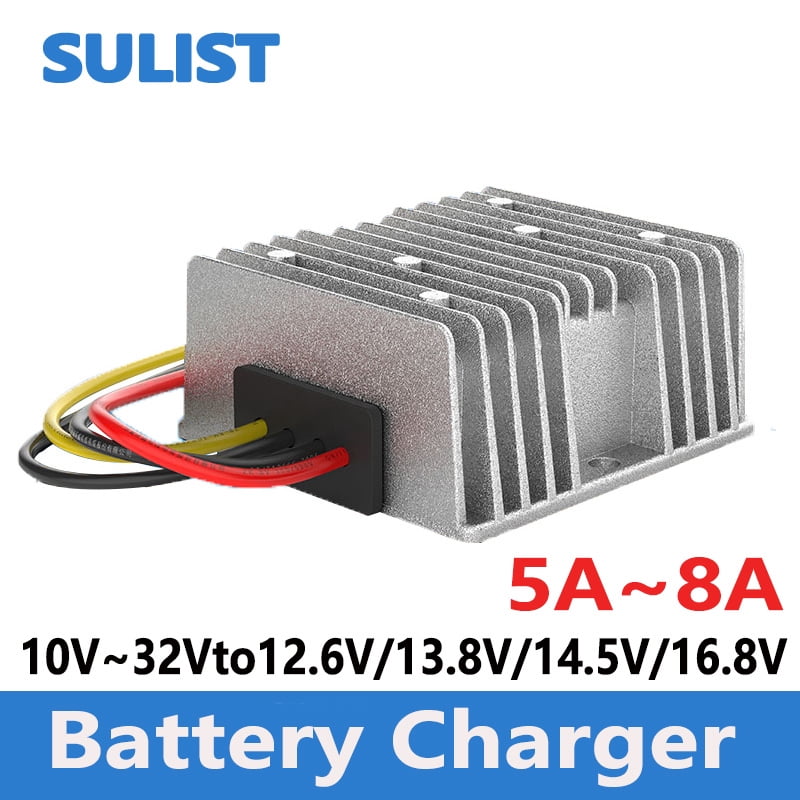

9-35V to 12.6V 5A 12V Lithium Battery Charger Dual Battery System Boost Step-down DC Lead Acid Battery Charger

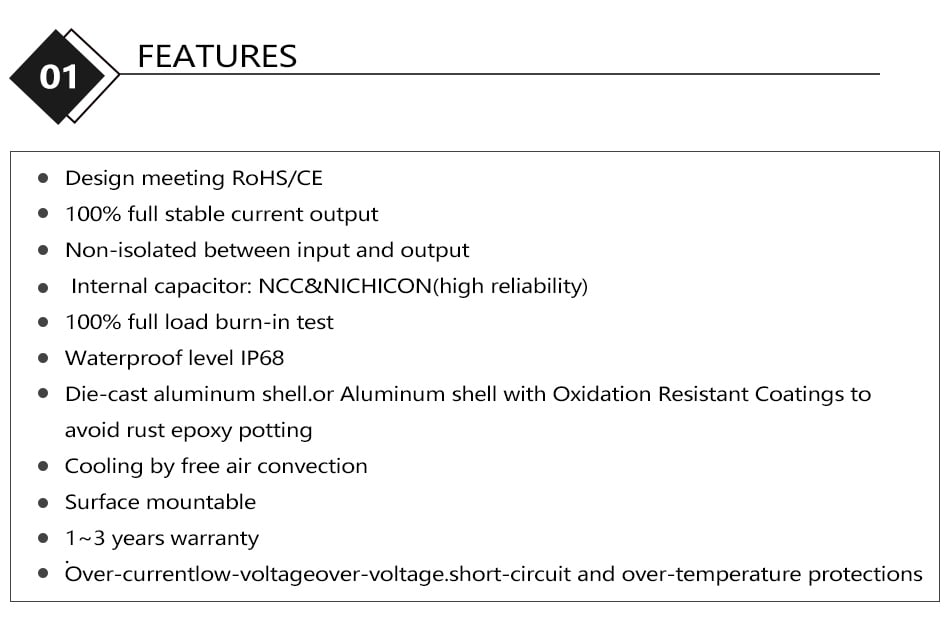

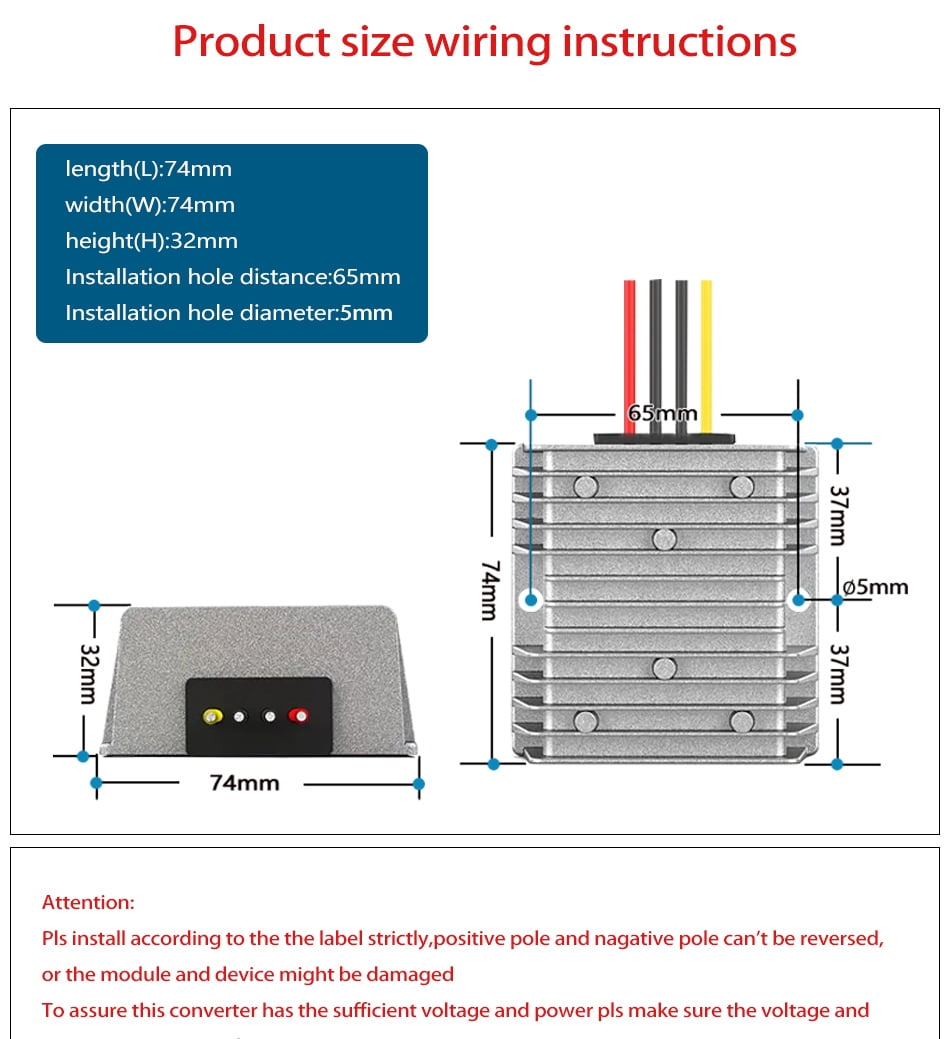

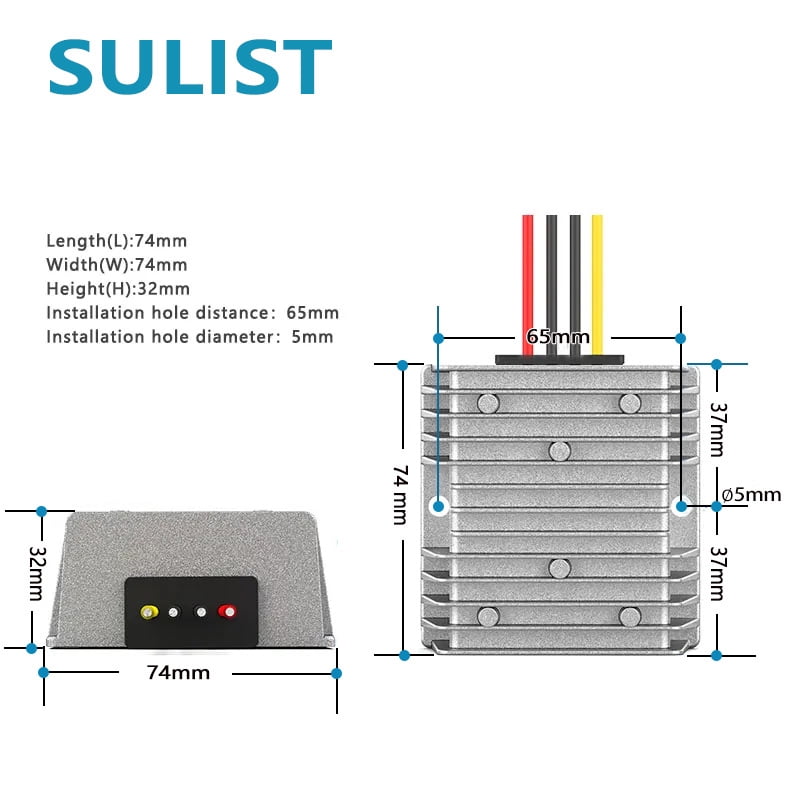

DC-DC Large Aluminum Shell Battery Charger Specification Document<br><b>1.Product Features<br><b>• Housing: Die-cast aluminum shell or aluminum shell with oxidation-resistant coatings to avoid rust epoxy potting.<br><b>• Cooling: Free air convection (natural cooling).<br><b>• Mounting: Surface mountable.<br><b>• Protection: Over-current, over-voltage, short-circuit and over-temperature protections.<br><b><br><b>2.Core Specifications (5A to 8A, Constant Current)<br><b>Parameter Details<br><b>Product name： DC-DC large aluminum shell battery charger<br><b>Module type： Non-isolated module, Synchronous rectification<br><b>Input voltage： DC12V / 24V<br><b>Input voltage range： DC10V ~ 32V<br><b>Output voltage： DC12.6V / 13.8V / 14.5V / 16.8V<br><b>Output current ：5A constant current / 8A constant current<br><b>Conversion efficiency： 93%<br><b>Voltage regulation rate ：1%<br><b>Load regulation rate ：2%<br><b>Operating temperature： -30℃ ~ 80℃<br><b>Waterproof level ：P68<br><b>Cooling method： Natural air convection<br><b>Protection： Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage (over-voltage optional)<br><b>Net weight： 260g<br><b>Size (LWH) ：747432 mm<br><b>Installation ：cable length 13 cm<br><b>Packing Electrostatic： bag + carton<br><b></b></b></b></b></b></b></b></b></b></b></b></b></b></b></b></b></b></b></b></b></b></b></b></b></b></b>

• Input voltage range： DC10V ~ 32V
• Output voltage： DC12.6V / 13.8V / 14.5V / 16.8V
• Input voltage： DC12V / 24V
• Product name： DC-DC large aluminum shell battery charger
